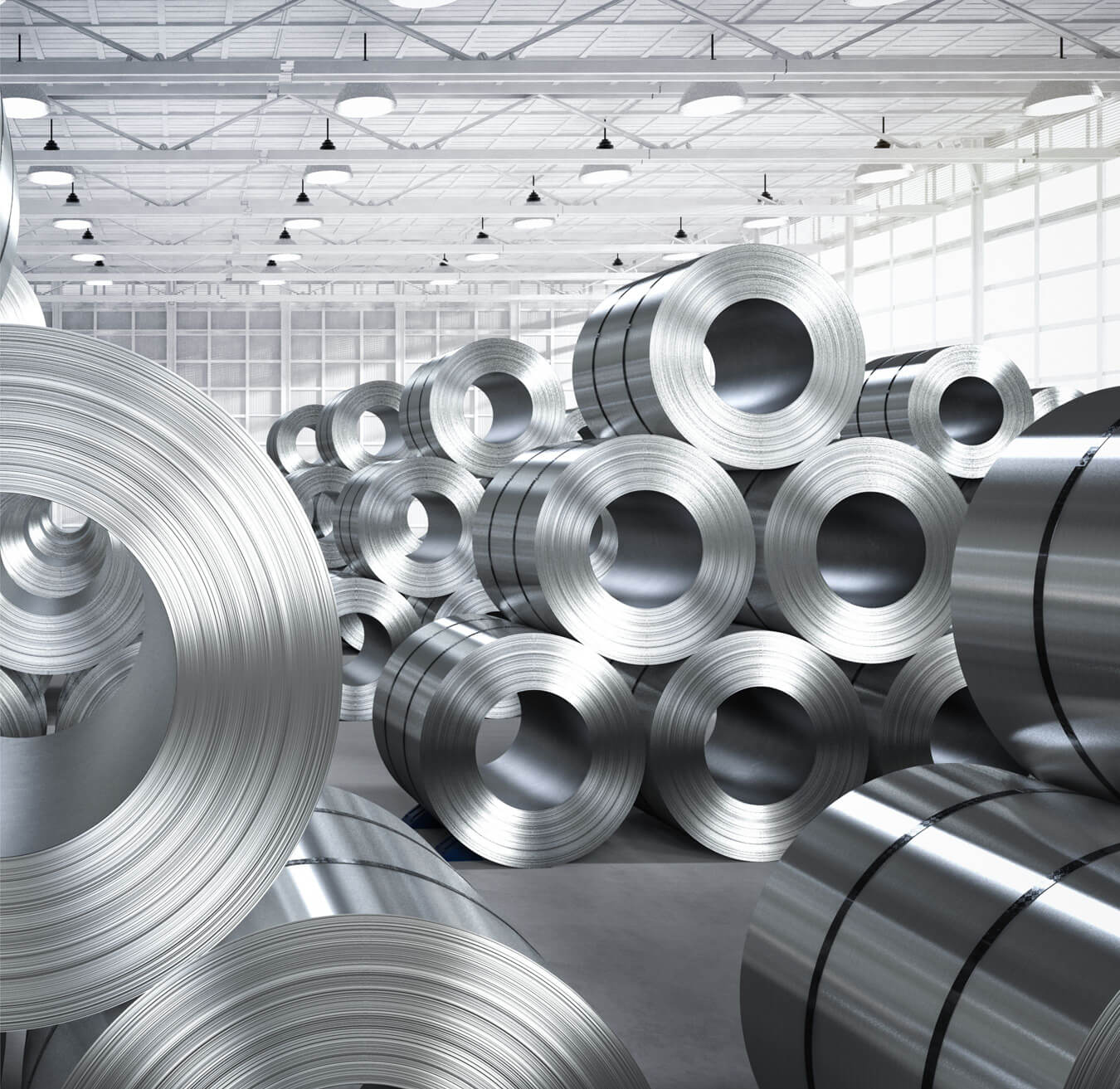

We are the biggest consumer dealers of Pakistan Steel Product of prime quality H.R, C.R, coils. We also import these products from China, South Africa and Russia.
We endeavor to be recognized as one of the leading and constantly growing force in the steel industry of the region, and to be admired for our business culture and adding value to our customers and enhancing inspiration to our people.

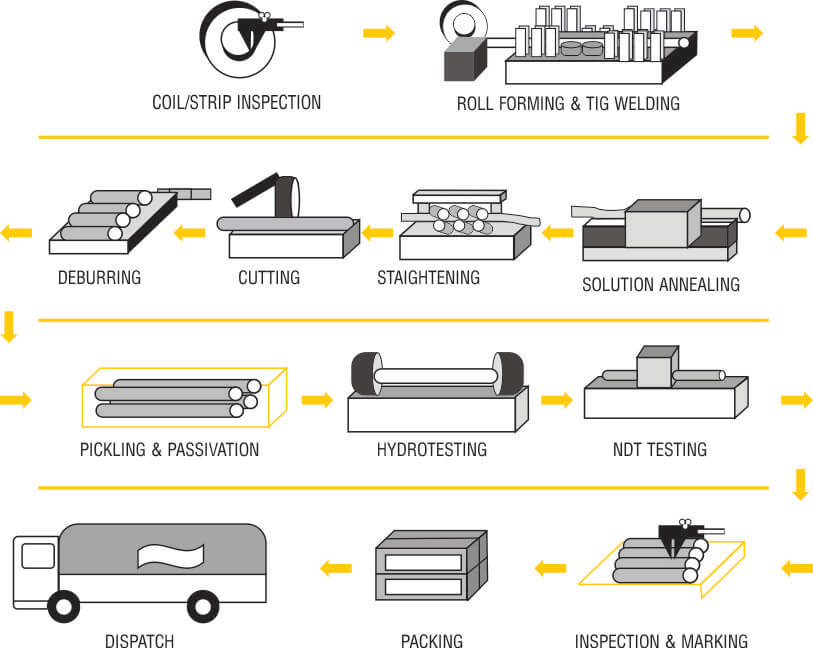

Pipes and tubes are manufactured from mild strips slitted from Hot Rolled Low carbon Steel Coils conforming to BS 1387: (1985), BS21: (1985), ASTM A53 (2002) and PS 1851: (1987) standards.

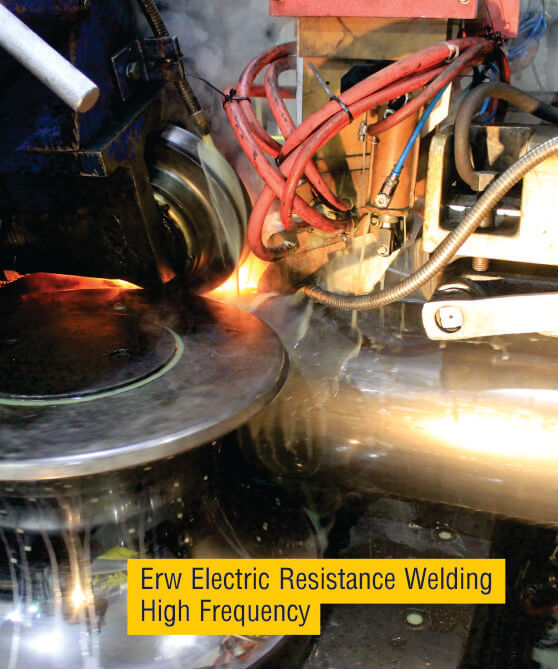

The strip passes through a series of drive forming and fin rolls and takes the required closed shaped and is welded continuously by page of an electric current of high frequency i.e. 4, 50, 000 cycles/second across the edges.
The pipes and tubes thus formed and welded pass through the sizing section where the pipes are allowed to pass in round shape while tubes are given the required shapes by passing them through a series of dies and finally dimensional deviations if any are corrected before the pipes or tubes are cut into required length by automatic cutting machine.
The pipes and tubes are then end faced and pressure tested. Thereafter protective surface finishing operations such as hot dip Galvanizing or varnishing is done as per specific requirements. The tubes are offered as plain, beveled, threaded ends or white flange.
All galvanized pipes are then moved to threading section where threads of required pitch are cut on both ends pipe. We use best threading technology of the age to ensure maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance. The threaded portion is then covered with plastic caps called thread protections, so that it remains in good condition.
Although the company has had a suitable quality control system in place for years, the transformation from a traditional system to a modern quality assurance system has lifted its performance to a new height. The fact that this system was designed in-house and its implementation was carried out by ATLAS Tube & Tube Profile Industry itself speaks a lot about management’s abilities and commitment of its workers.
To achieve standardization in its operations, the company has documented manuals, procedures, work instructions and job descriptions. Every worker is trained and provided with copies of relevant work instructions, written in local language, enabling him to carry out his job in a thorough professional manner.

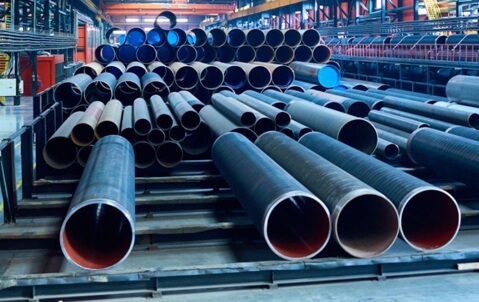

The manufactured pipes are the helps of overhead cranes carefully shifted to our warehouse. The pipes are stacked in hexagonal or square bundles. Each bundle is identified by its tags mentioning thereon size, quantity and thickness. These bundles are then placed in their respective sections. To optimize our supply chain, we have a dedicated clients logistics and services team.
